Water Light

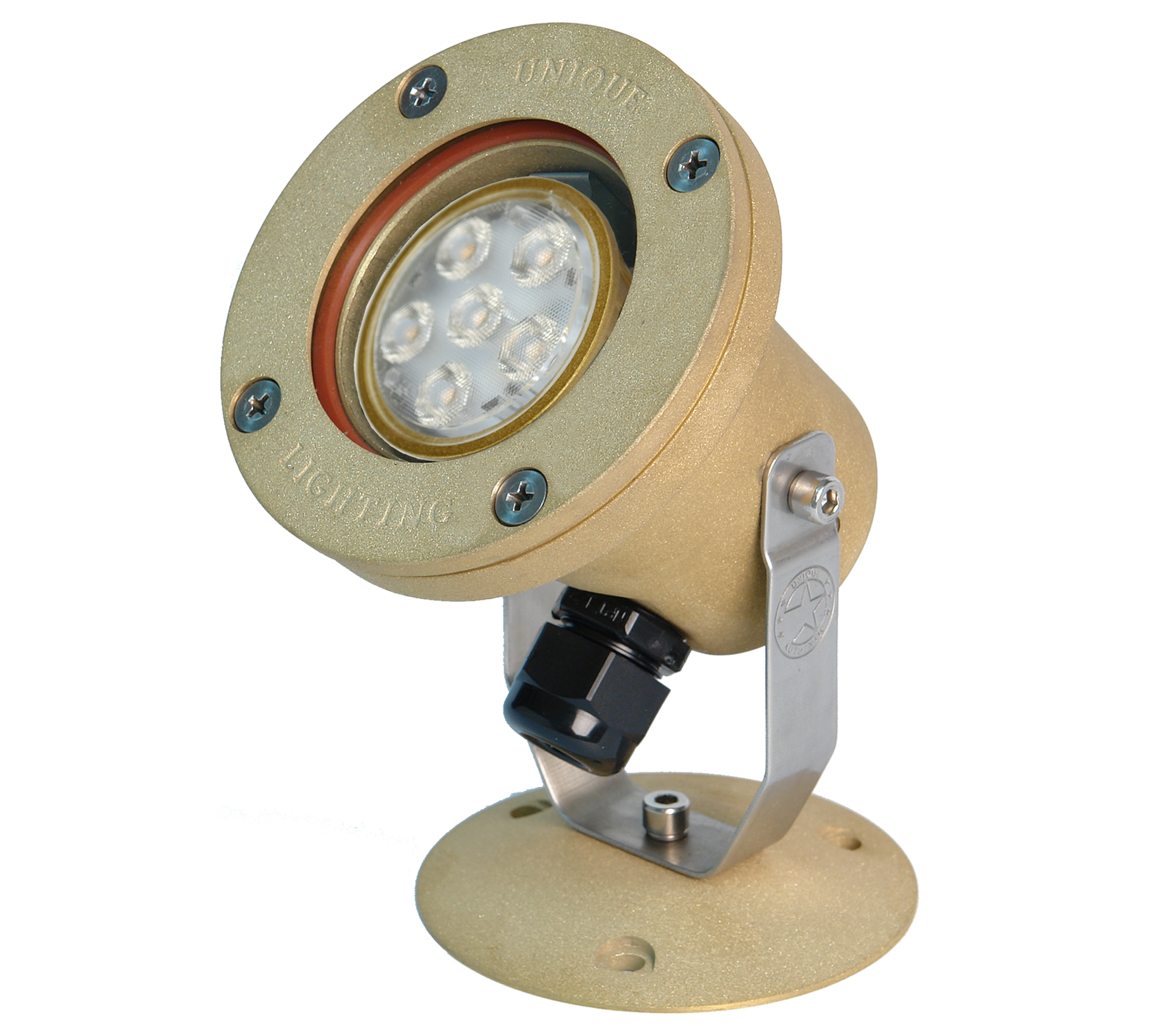

Made from machined brass, this underwater light can be used in depths of up to 3 feet. The Atlantis 16 includes a FLEX GOLD™ Series MR16 LED lamp, and a swivel bracket that allows 180-degree rotation. As with all Odyssey fixtures, the Atlantis 16 carries a Limited Lifetime Warranty.
Cast Brass
20-40-60 Beam Spread
82+ CRI
50' Wire Lead
AMC
HUB Ready
Body Precision machined from solid brass casting.
Materials Crafted from cast brass.
Gasket High-temperature silicone o-ring for a water-tight seal.
Shroud Precision machined. Flat shroud with captivated stainless steel screws. Accepts up to one additional lens/hex cell accessory.
Lens Shock resistant glass lens.Comes with a complete set of optical designer lenses including spread lens, frosted, hex cell.
Lamp For use with a 20W MR16 halogen lamp. * Rated for a 20W MR16 lamp when the fixture is fully submerged in water. FLEX GOLD™ Series LED 3W, 4W, 5W, 8W MR16 lamps is 10V-15V. LED lamps are available in 2700K and 3000K color temperatures.
Electrical Requirements A remote 12V Pool & Spa transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD™ Series LED lamps is 10V-15V.
Lamp Connection Specification grade, beryllium copper lamp holder. GU5.3 base.
Wiring 16/2 STOOW black SO cord.
Mounting Hardware PBT sleeve for in-ground installation.

Please note that all Unique Lighting Systems® fixtures have a “Living Finish,” and can be expected to vary in hue over time.

Our fixtures come standard with our one-of-a-kind Weathered Brass finish, natural brass, or natural copper.

Additional colors may be ordered with powder coating options. These colors are subject to additional lead times and will incur a cost premium. A limited warranty applies to all powder coat finishes.

Brass Standard Finishes

Weathered Brass Weathered Brass



Brass Powder Coated Finishes

Tucson Tan Tucson Tan
Verde Green Verde Green
Black Black
White White
Titanium Knight Titanium Knight



Stock powder coated colors displayed are subject to varying lead-times and will incur an additional cost. A Limited Warranty applies to all powder coated products. Custom colors are available upon request. Please inquire about cost and lead times. Contact factory for custom colors and matching paint options.



Custom Powder Coat Colors

In addition to our standard colors, we also offer the full array of Cardinal Paint’s extensive line of powder coat colors. If there is a special color you are looking for, we can match Pantone colors, or even match a physical sample that you provide.
