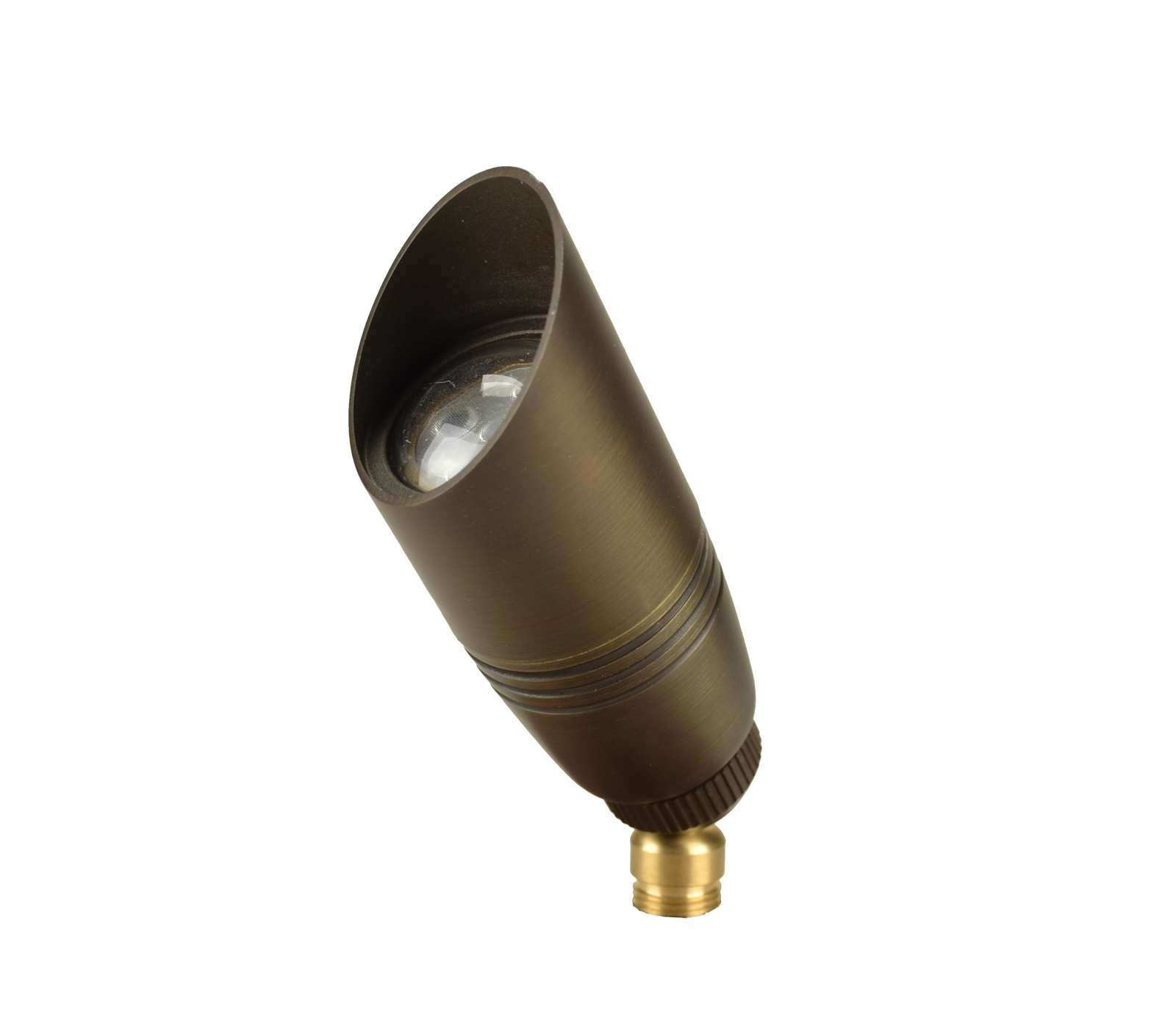

A smaller version of the Pulsar, the Probe is ideal when up-lighting is challenged by a small installation area. Featuring a lock and load shroud the Probe is enhanced by a revolutionary ball and joint swivel mount allowing a 360° rotation. The petite die cast brass body is designed to house a FLEX GOLD™ Series MR16 LED lamp.
The Probe is equipped with five designer lenses, a lens retainer clip, 25’ of #18/2 low voltage wire and a Limited Lifetime Warranty.
*Side mount option used for up or down lighting
| Body | Precision machined from solid brass casting. Body design provides enclosed, water resistant wire way to protect wires. |
| Gasket | High-temperature silicone o-ring for a water-tight seal. |
| Knuckle | The Probe is enhanced by a revolutionary ball and joint swivel mount allowing a 360° rotation. |
| Shroud | Precision machined and comes with a factory sealed shock resistant glass lens to prevent water intrusion. Accepts up to one additional lens/hex cell accessory. |
| Lens | Comes with a complete set of optical designer lenses including a spread lens, frosted lens, and hex cell lens. |
| Lamp | For use with FLEX GOLD™ Series LED lamps available in 3W, 4W, 5W, 8W MR16. LED lamps are available in 2700K and 3000K color temperatures. Also compatible with a halogen MR16 lamp up to 35 Watts. Max LED wattage of 8W. |
| Electrical Requirements | A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD™ Series LED lamps is 10V-15V. |
| Lamp Connection | Specification grade, beryllium copper lamp holder. GU5.3 base. |
| Wiring | Exclusive UF Intelli-Flex wire with anti-moisture migration connections. |
| Mounting Stake | The standard mounting stake is injection molded PVC with a ½” NPS threaded female fitting. |
Please note that all Unique Lighting Systems® fixtures have a “Living Finish,” and can be expected to vary in hue over time.
Our fixtures come standard with our one-of-a-kind Weathered Brass finish, natural brass, or natural copper.
Additional colors may be ordered with powder coating options. These colors are subject to additional lead times and will incur a cost premium. A limited warranty applies to all powder coat finishes.
Weathered Brass
Tucson Tan
Verde Green
Black
White
Titanium Knight
Stock powder coated colors displayed are subject to varying lead-times and will incur an additional cost. A Limited Warranty applies to all powder coated products. Custom colors are available upon request. Please inquire about cost and lead times. Contact factory for custom colors and matching paint options.
Custom Powder Coat Colors
In addition to our standard colors, we also offer the full array of Cardinal Paint’s extensive line of powder coat colors. If there is a special color you are looking for, we can match Pantone colors, or even match a physical sample that you provide.
