Up Light

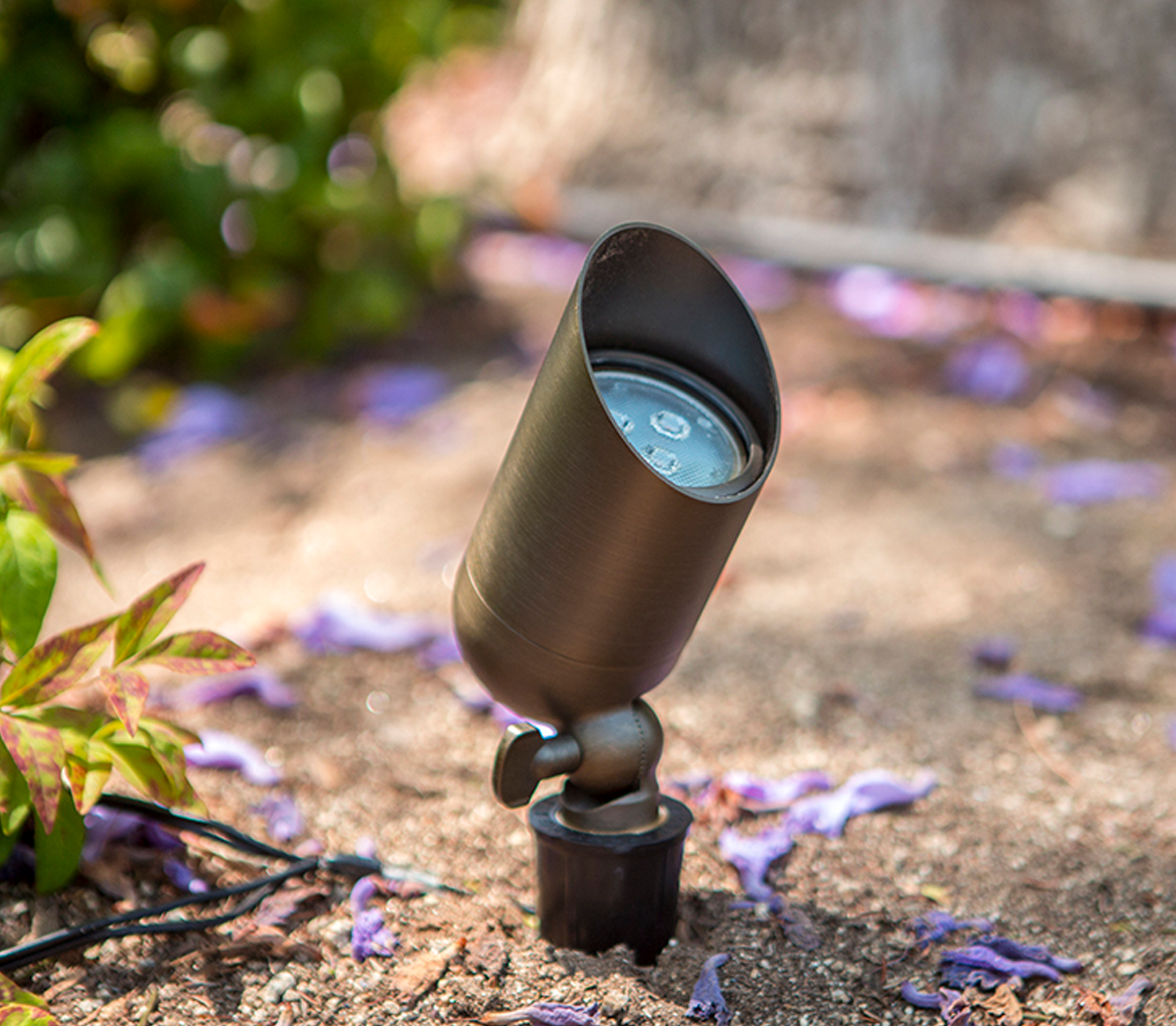

One of the most resourceful fixtures in the Elements line, the Positron offers style and function without compromise. Its sleek straight lines make the Positron an essential fixture when lighting queen palms, trees, columns or any other tall structure.

Solid Brass
20-40-60 Beam Spread
82+ CRI
25' Wire Lead
Flex Wire Lead
AMC
HUB Ready

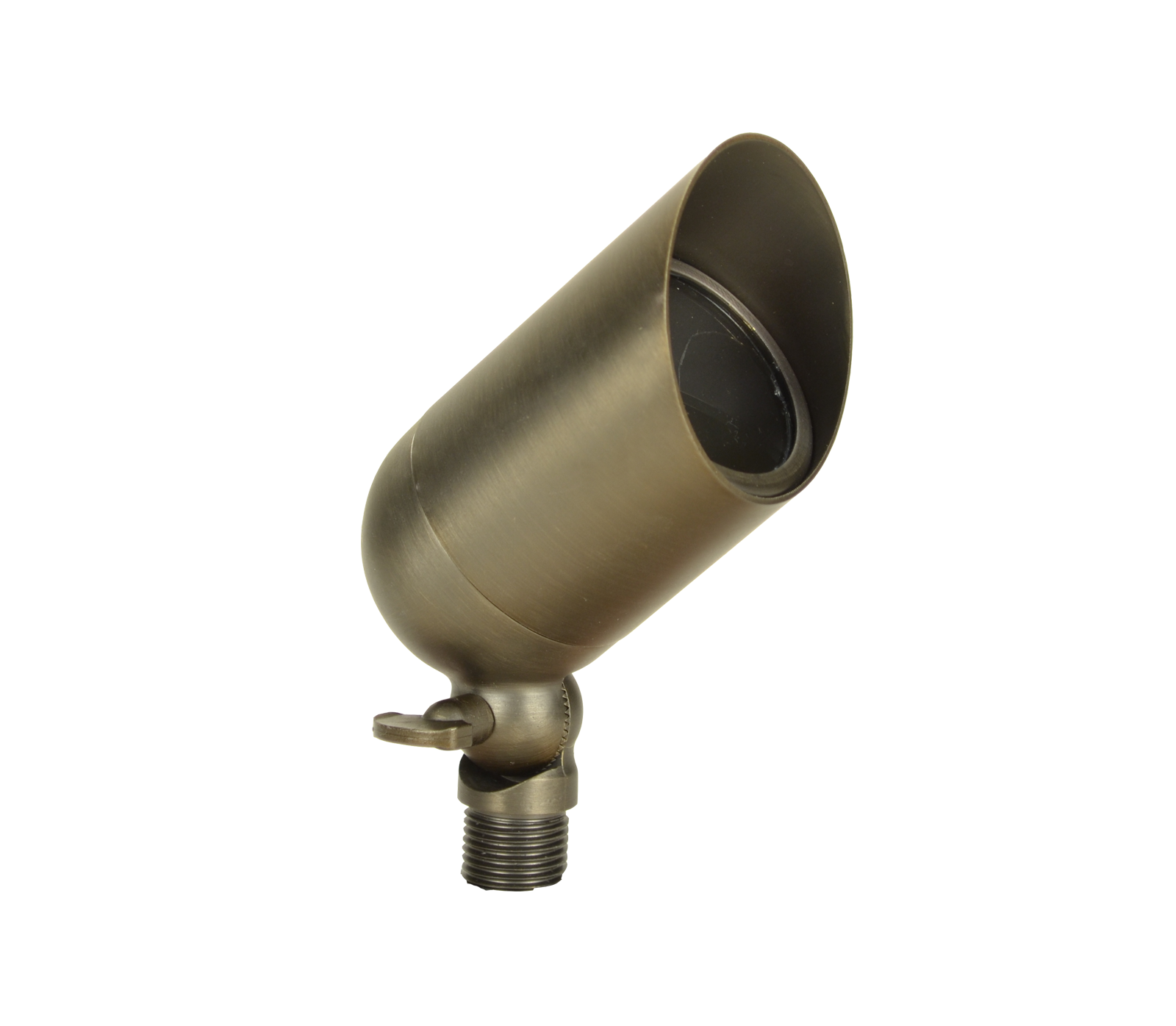

Body Precision machined from solid brass. Body design provides enclosed, water resistant wire way to protect wires. Features an integral knuckle for maximum mechanical strength.
Gasket High-temperature silicone o-ring for a water-tight seal.
Knuckle Machined brass knuckle with a solid brass adjustable thumb screw. The vertical tilt of 270° and horizontal rotation of 360° for easy aiming. The Orbital Lock Nut™ allows for locking the horizontal rotation without adjusting the stake.
Shroud Precision machined and comes with a factory sealed shock resistant glass lens to prevent water intrusion. Accepts up to one additional lens/hex cell accessory.
Lens Comes with a clear glass lens.
Lamp For use with FLEX GOLD™ Series LED lamps available in 3W, 4W, 5W, 8W MR16. LED lamps are available in 2700K and 3000K color temperatures. Also compatible with a halogen MR16 lamp up to 35 Watts. Max LED wattage of 8W.
Electrical Requirements A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD™ Series LED lamps is 10V-15V.
Lamp Connection Specification grade, beryllium copper lamp holder. GU5.3 base.
Wiring Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Mounting Stake The standard mounting stake is injection molded PVC with a ½” NPS threaded female fitting.
positron_spec

Please note that all Unique Lighting Systems® fixtures have a “Living Finish,” and can be expected to vary in hue over time.

Our fixtures come standard with our one-of-a-kind Weathered Brass finish, natural brass, or natural copper.

Additional colors may be ordered with powder coating options. These colors are subject to additional lead times and will incur a cost premium. A limited warranty applies to all powder coat finishes.

Brass Standard Finishes

Weathered Brass Weathered Brass



Brass Powder Coated Finishes

Tucson Tan Tucson Tan
Verde Green Verde Green
Black Black
White White
Titanium Knight Titanium Knight



Stock powder coated colors displayed are subject to varying lead-times and will incur an additional cost. A Limited Warranty applies to all powder coated products. Custom colors are available upon request. Please inquire about cost and lead times. Contact factory for custom colors and matching paint options.



Custom Powder Coat Colors

In addition to our standard colors, we also offer the full array of Cardinal Paint’s extensive line of powder coat colors. If there is a special color you are looking for, we can match Pantone colors, or even match a physical sample that you provide.
