Up Light

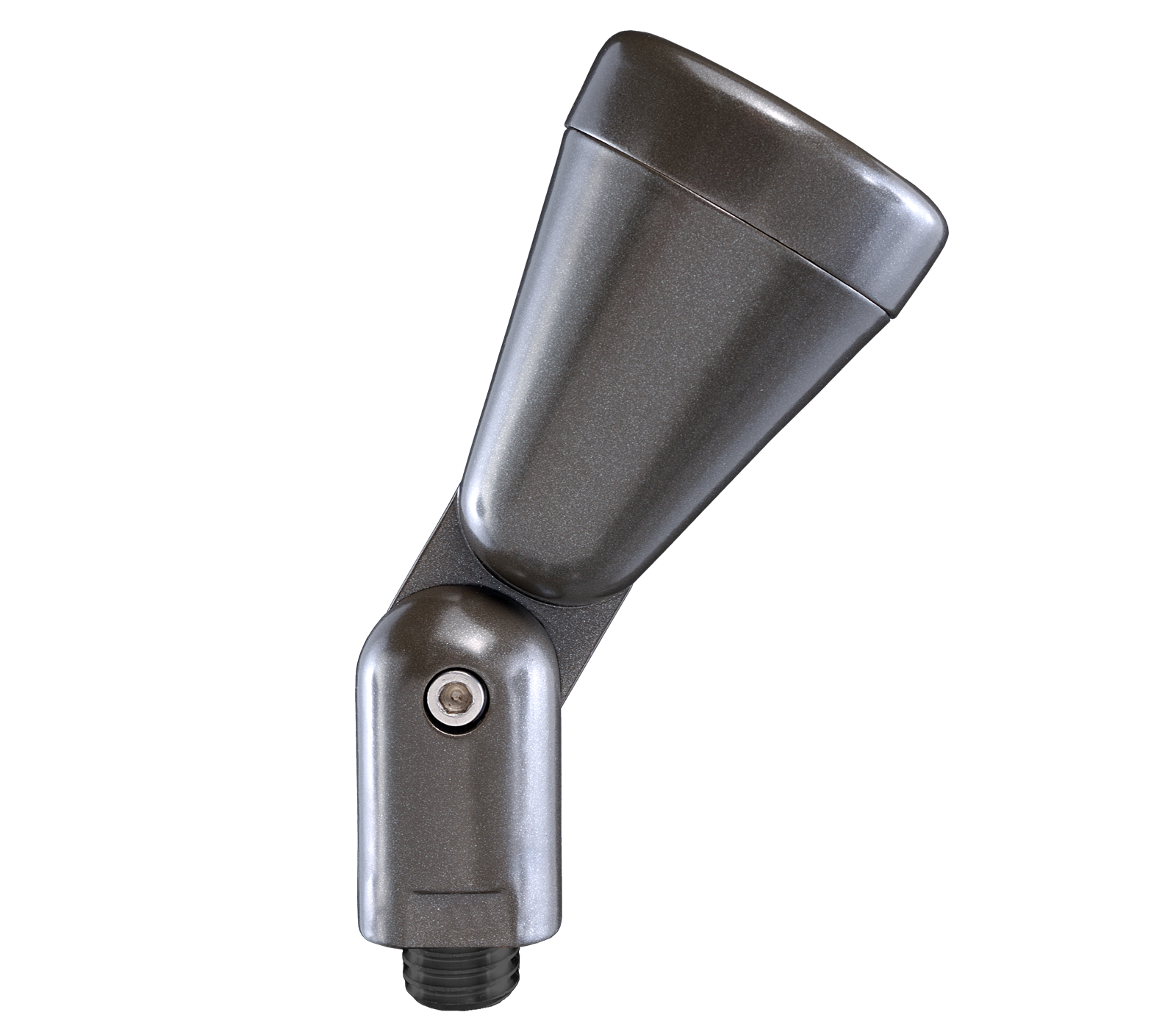

The Nucleus® fixture is designed to illuminate shrubs, trees, signage,architectural facades and more. Features include, Marine grade A360 alloy construction, Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion, 15’ hub-ready wire lead, 1' FLEX GOLD™ Auxiliary Lead, Composite stake with molded brass threaded insert. Available in shrouded and non- shrouded version. Dual silicone o-ring seal. Accepts Unique’s FLEX GOLD™ Series LED MR16 lamps or halogen lamps. Pre-Lamped now available!
A360 Alloy
20-40-60 Beam Spread
82+ CRI
Flex Wire Lead
AMC
HUB Ready
Body Precision machined from Marine grade A360 alloy. Body design provides enclosed, water resistant wire way to protect wires. Features an integral knuckle for maximum mechanical strength.
Gasket  Two high-temperature silicone o-ring for the water-tight seal.
Knuckle  Machined knuckle with a solid stainless steel Allen bolt. Vertical tilt for easy aiming.
Shroud  Precision machined and comes with a factory sealed shock resistant glass lens to prevent water intrusion. Accepts up to one additional lens/hex cell accessory.
Finish  Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion.
Lens  Flat clear tempered glass. Patented removable lens. The full gasket lens is held in place with a threaded lens retainer.
Lamp  For use with FLEX GOLD™ Series LED lamps available in 3W, 4W, 5W, 8W MR16. LED lamps are available in 2700K, 3000K and 5000K color temperatures. Halogen lamp up to a 35W MR16 lamp.

E-Shield™ is the Elements™ Series coating process that bonds base material with corrosion-resistant processes and finishes it with an extremely durable, polyester powder coat paint. With over 750 hours of salt spray endurance testing and built-in ultraviolet resistance, E-Shield™ will stand up to the harshest environments.Part of being sustainable is making products last longer. Our E-Shield™ process delivers superior corrosion resistance. Both powder coating and e-coating deliver a uniform finish which is beautiful in appearance and superior in durability.

Stage 1: Marine Grade A360 Alloy – Pre-treated with ultrasonic cleaning cycle.

Stage 2: Anodizing – Creates an oxide layer that seals against corrosion.

Stage 3: e-Coating – Automotive industry tough electroplating provides exceptional corrosion resistance even in marine environments.

Stage 4: Super TGIC Thermoset Polyester Powder Coat Paint – Excellent exterior durability and UV stabilized. Resists abrasion and chipping.

Elements Standard Finishes

Bronze Bronze
Black Black
