Herald Knights Series

  • TUV Rheinland
Up Light

The Herald™ is a precision directional accent and spot light crafted from solid brass for long-term performance in outdoor environments. At the heart of its design is an adjustable shroud that allows the installer to dial in beam cutoff and glare control directly in the field — tightening the light pattern for dramatic focal uplighting or opening it for a broader spread across architectural surfaces. Paired with a fully adjustable knuckle joint for precise aiming, the Herald excels at highlighting trees, columns, facade details, and sculptural elements within the landscape. Compatible with Flex Gold® MR16 lamps or Vivid for color and individual lamp control.

Why Knights
Mobile Apps
Where to Buy
Solid Brass
20-40-60 Beam Spread
82+ CRI
Flex Wire Lead
AMC
HUB Ready

Mechanical       
  • Mounting: Threaded 1/2” NPT
  • Wire Lead: 10” / 3m
  • Aiming: Adjustable directional knuckle - tilt 0°-90°, rotation 180°
Construction
  • Body Material: Cast & Machined Brass  (conforms to ASTM C38500)
  • Shroud: Machine Brass
  • Stake: ABS
  • Lens: Clear tempered glass
Electrical
  • Input Voltage: 12–15V AC/DC
  • Socket: MR16 (GU5.3)
  • Safety Standard: 18 AWG
  • Pre-Lamp Power (W): 4
  • Pre-Lamp Power VA: 2.67
Compliance & Ratings
  • Location Rating: Outdoor
  • IP Rating: IP65 — Wet Location
  • Certificates: UL 2108
Warranty
  • Knights Series Fixtures are backed by a 15-year limited warranty that covers defects in materials and workmanship under normal use and operating conditions.
Herald

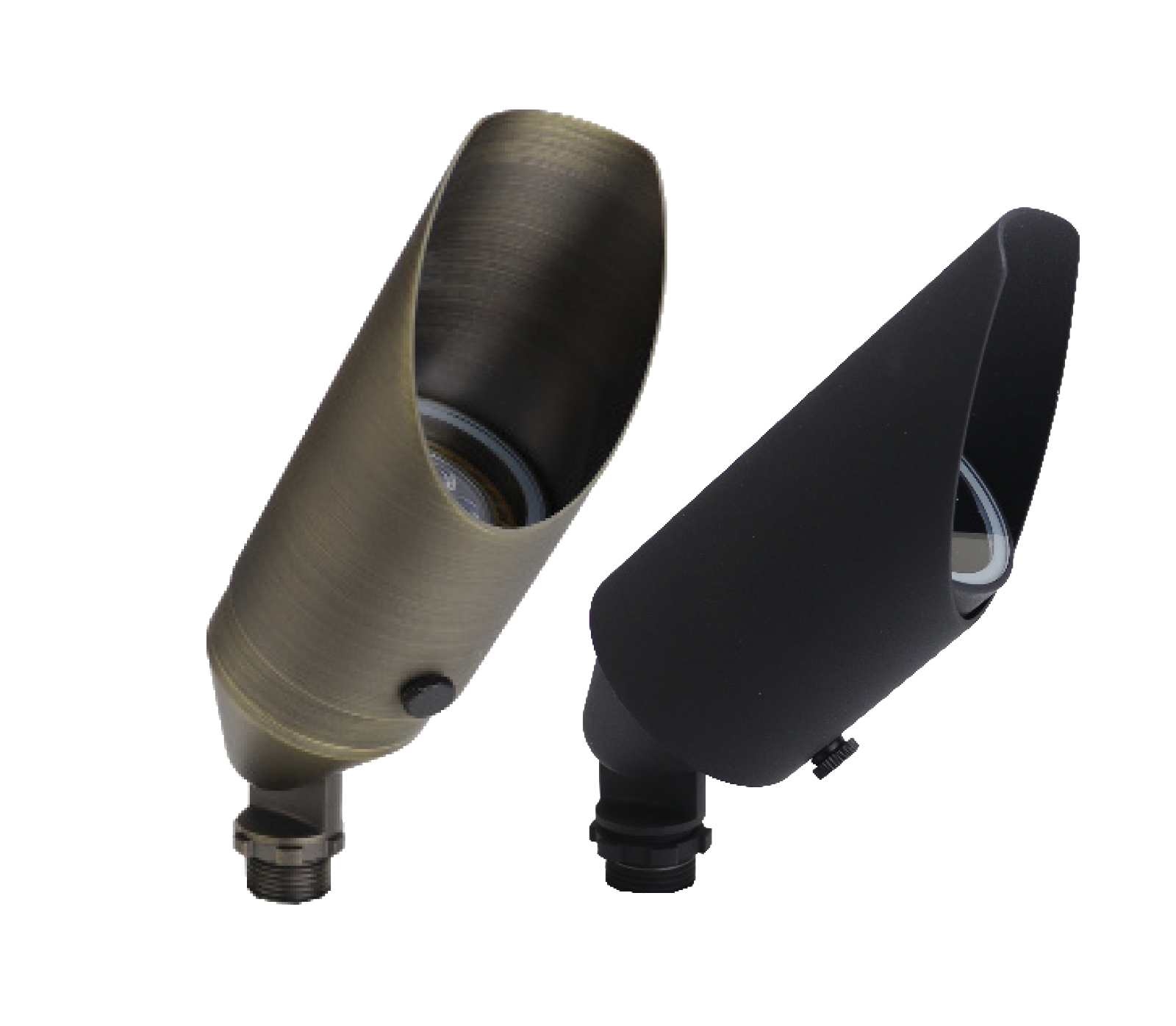

Weathered Brass (WB): Decorative electroplated weathered/antique bronze on brass. Multi-layer system with protective clear topcoat. Salt spray per ASTM B117: 500 hrs. Natural Patina over time.

Satin Black (BK): Satin black powder coating on brass. Salt spray per ASTM B117: 1,000 hrs.

Standard Finishes

Weathered Brass Weathered Brass
Black Black
