Ledge Light

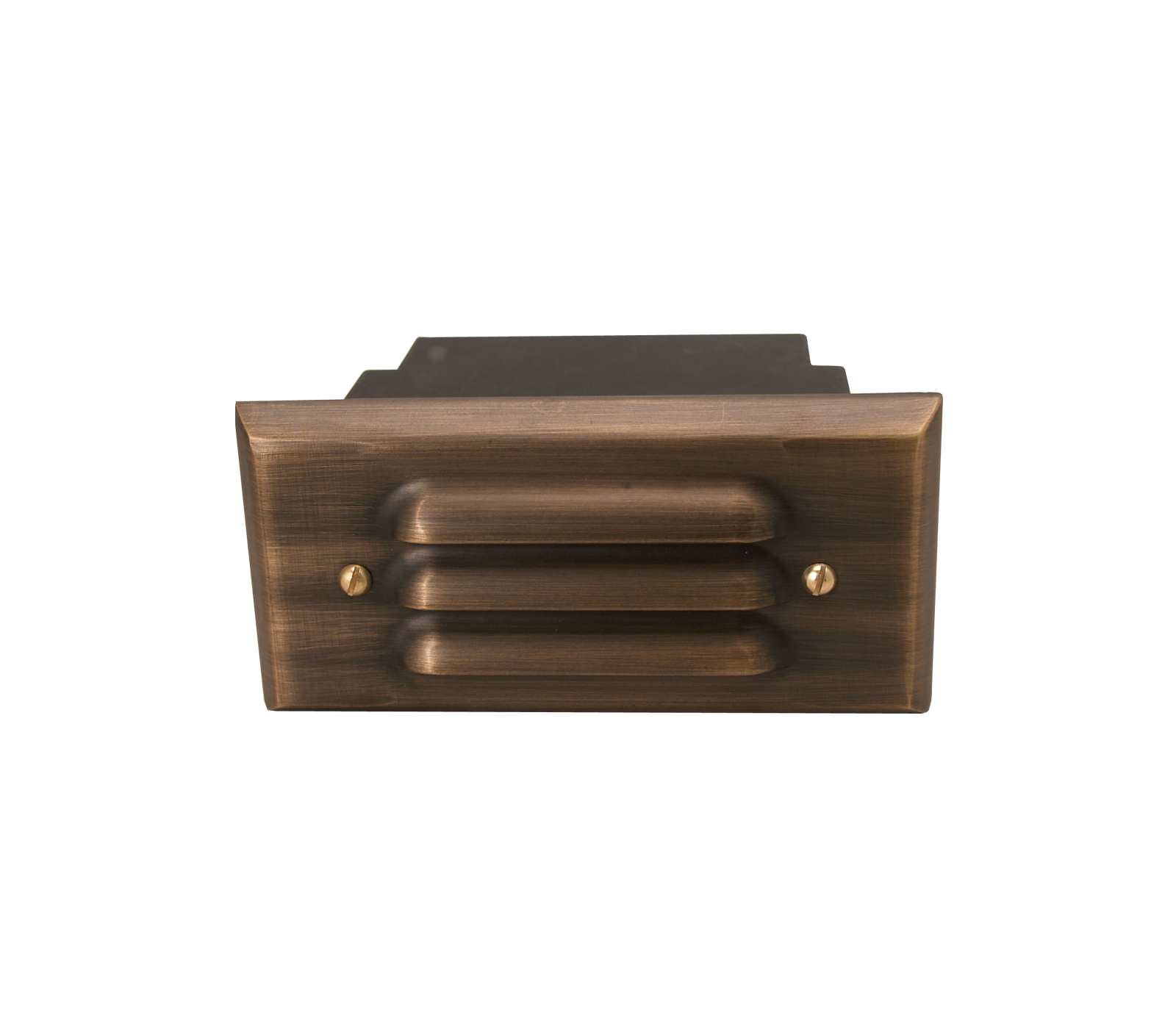

The Voyager 5 is a classic recessed step light. Perfect to illuminate stairs, benches, short retaining walls and other niche locations, The Voyager 5 can be ordered with a louvered, open or hooded faceplate to direct and spread light to the intended area.

Equipped with a pair of FLEX GOLD™ Series LED T3 lamps, 25’ of #18/2 low voltage wire and a Limited Lifetime Warranty the Voyager 5 has all you need to get the job done.
Cast Brass
360 Beam Spread
82+ CRI
25' Wire Lead
AMC
HUB Ready
Materials Crafted from cast brass and PBT injection molded housing.
Body Fully cast brass faceplate. PBT injection molded housing.
Faceplate Fully cast brass. Three options; louvered, hood and open face.
Lens Shock resistant, frosted or clear, depending on faceplate option.
Lamp For use with two (2) FLEX GOLD™ Series T3 LED lamps, available in 1W and 2W, 3000K color temperature. Also compatible with up to two (2) 20-watt Astro-Brite lamps.
Electrical Requirements A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD™ Series T3 LED lamps is 10V-15V.
Socket Specification grade, beryllium copper lamp holder. GU5.3 base.
Wiring Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Mounting Hardware Mounting screws and anchors with foam leveling gasket.

Please note that all Unique Lighting Systems® fixtures have a “Living Finish,” and can be expected to vary in hue over time.

Our fixtures come standard with our one-of-a-kind Weathered Brass finish, natural brass, or natural copper.

Additional colors may be ordered with powder coating options. These colors are subject to additional lead times and will incur a cost premium. A limited warranty applies to all powder coat finishes.

Brass Standard Finishes

Weathered Brass Weathered Brass



Brass Powder Coated Finishes

Tucson Tan Tucson Tan
Verde Green Verde Green
Black Black
White White
Titanium Knight Titanium Knight



Stock powder coated colors displayed are subject to varying lead-times and will incur an additional cost. A Limited Warranty applies to all powder coated products. Custom colors are available upon request. Please inquire about cost and lead times. Contact factory for custom colors and matching paint options.



Custom Powder Coat Colors

In addition to our standard colors, we also offer the full array of Cardinal Paint’s extensive line of powder coat colors. If there is a special color you are looking for, we can match Pantone colors, or even match a physical sample that you provide.
