Ledge Light

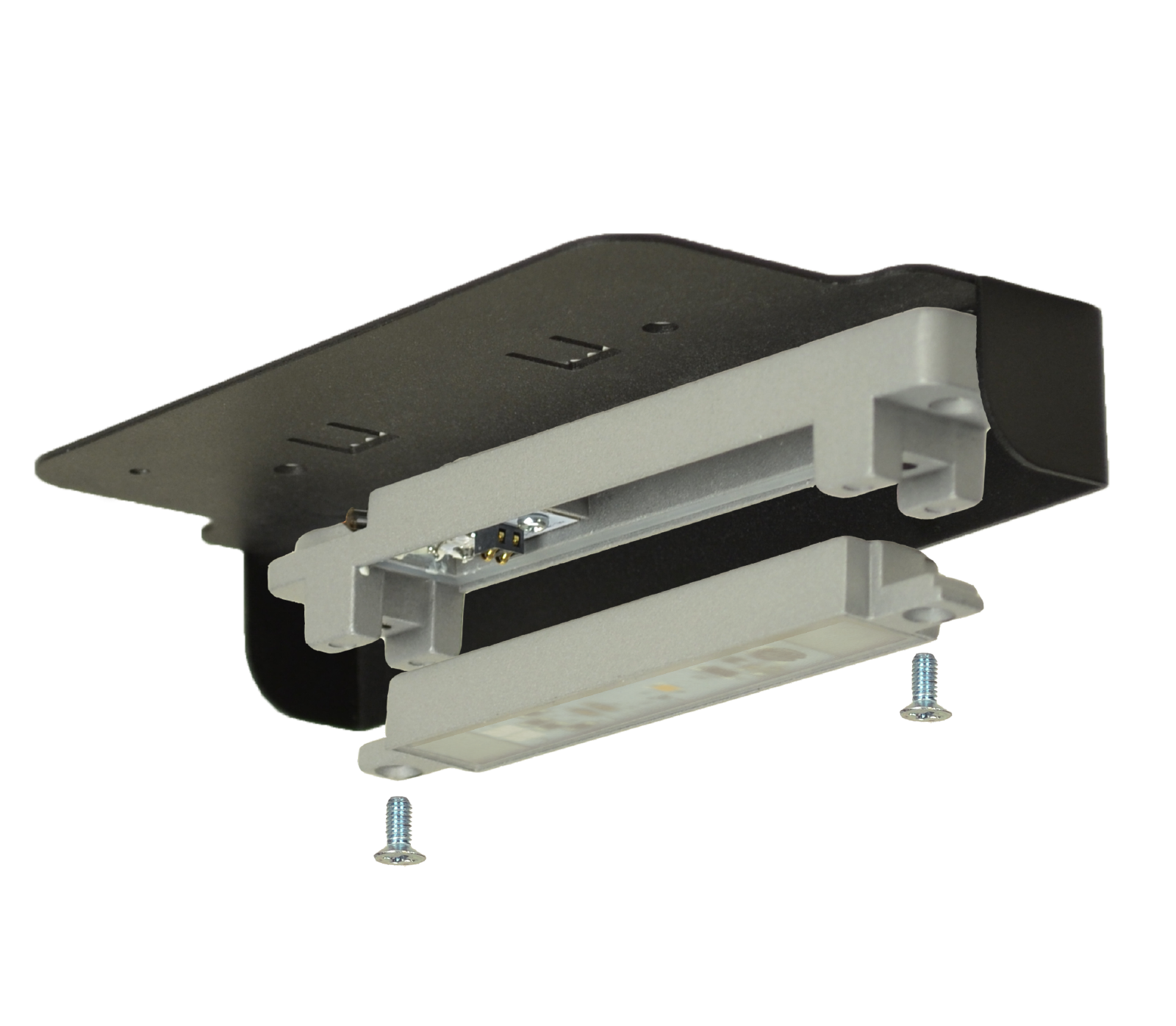

The Iso is now “serviceable”, allowing for trouble-free light engine replacement.  Now offering 2 lumen options (40 and 140 lumen models) in both 2700K and 3000K color

temperatures.  The new addition of a FLEX Auxiliary Lead for simplifies installation. The new Iso Ledge Light comes with an 8 foot primary wiring lead and a new 2 foot FLEX Auxiliary Lead.

A360 Alloy
82+ CRI
Flex Wire Lead
HUB Ready
Materials Crafted from A360 alloy.
Body  Precision formed alloy.
Cover Machined alloy.
Lens Shock resistant, frosted lens.

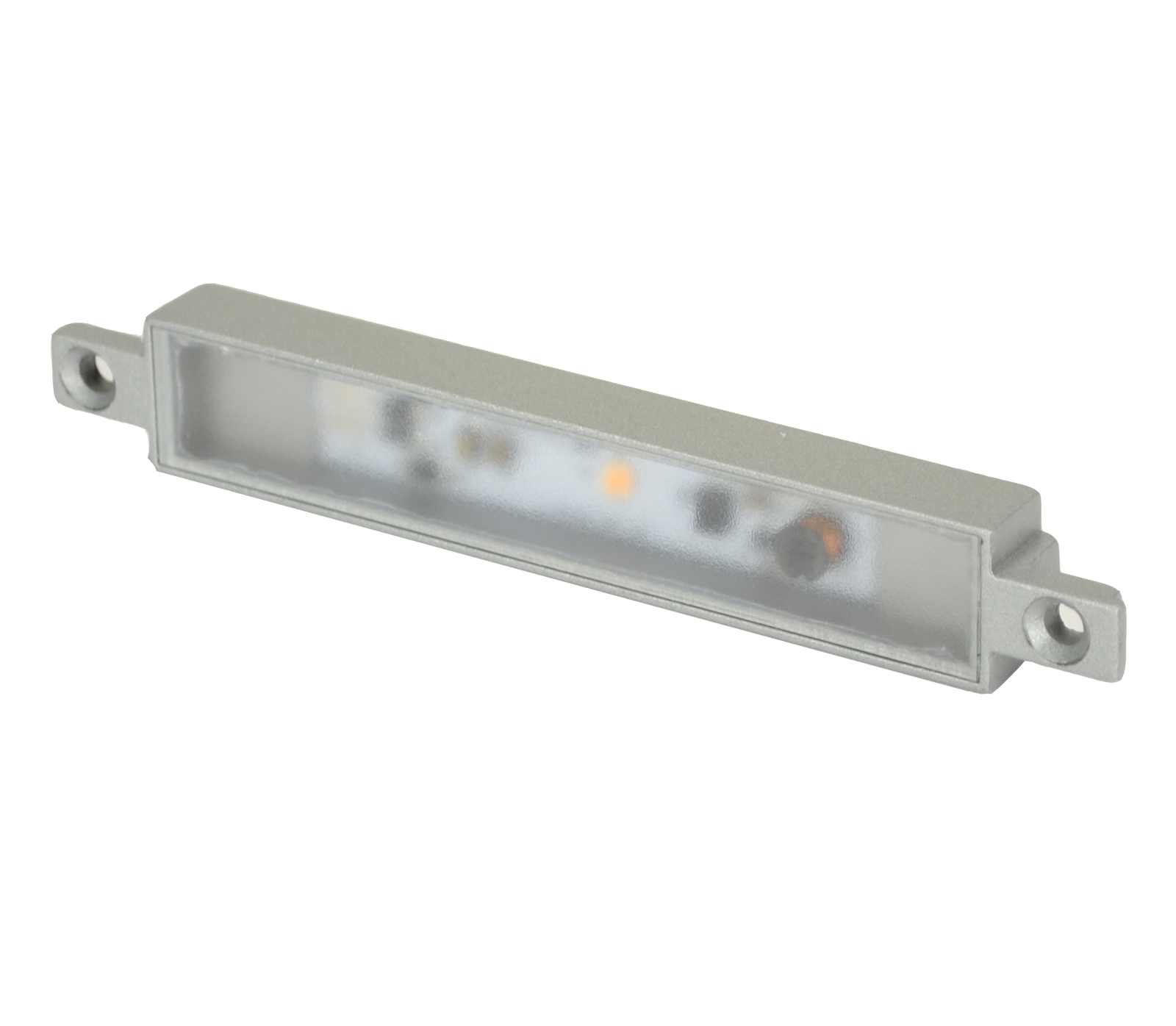

Lamp Serviceable 40 and 140 lumen LED light engine options available.  2700K and 3000K options available.
Electrical Requirements  A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®.
Wiring Exclusive UF Intelli-Flex wire with anti-moisture migration connections.

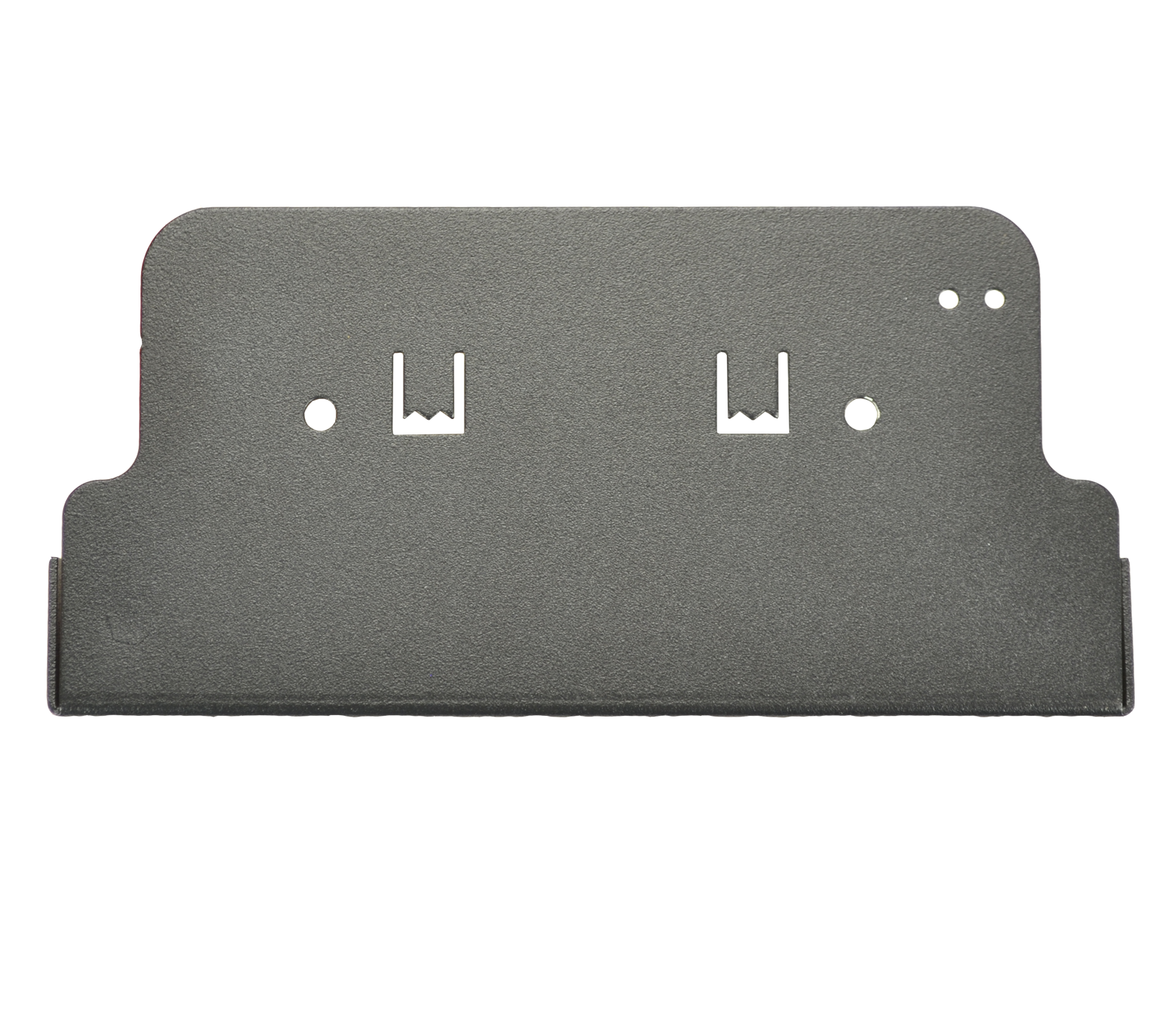

Mounting Hardware Mounting plate.


Part Number Lumen Volt Amps Color Temp.
IS6-LED-27K-BK 140
IS6-LED-30K-BK 140 3000K
IS6-LED-27K-BZ 140 2700K
IS6-LED-30K-BZ 140 3000K
IS6-27K-40L-BK-F 40 1.0 2700K
IS6-27K-140L-BK-F 140 3.0 2700K
IS6-30K-40L-BK-F 40 1.0 3000K
IS6-30K-140L-BK-F 140 3.0 3000K
IS6-27K-40L-BZ-F 40 1.0 2700K
IS6-27K-140L-BZ-F 140 3.0 2700K
IS6-30K-40L-BZ-F 40 1.0 3000K
IS6-30K-140L-BZ-F 140 3.0 3000K
IS6-LED-27K-40L 40 1.0 2700K
140 3.0 2700K
IS6-LED-30K-40L 40 1.0 3000K
IS6-LED-30K-140L 140 3.0 3000K
IS6-LED-27K-40L (Wired) 40 2700K
IS6-LED-27K-140L (Wired) 140 2700K
IS6-LED-30K-40L (Wired) 40 3000K
IS6-LED-30K-140L (Wired)  140 3000K

E-Shield™ is the Elements™ Series coating process that bonds base material with corrosion-resistant processes and finishes it with an extremely durable, polyester powder coat paint. With over 750 hours of salt spray endurance testing and built-in ultraviolet resistance, E-Shield™ will stand up to the harshest environments.Part of being sustainable is making products last longer. Our E-Shield™ process delivers superior corrosion resistance. Both powder coating and e-coating deliver a uniform finish which is beautiful in appearance and superior in durability.

Stage 1: Marine Grade A360 Alloy – Pre-treated with ultrasonic cleaning cycle.

Stage 2: Anodizing – Creates an oxide layer that seals against corrosion.

Stage 3: e-Coating – Automotive industry tough electroplating provides exceptional corrosion resistance even in marine environments.

Stage 4: Super TGIC Thermoset Polyester Powder Coat Paint – Excellent exterior durability and UV stabilized. Resists abrasion and chipping.

Elements Standard Finishes

Bronze Bronze
Black Black
