Quasar 2 Odyssey Series

  • TUV Rheinland
Downlight

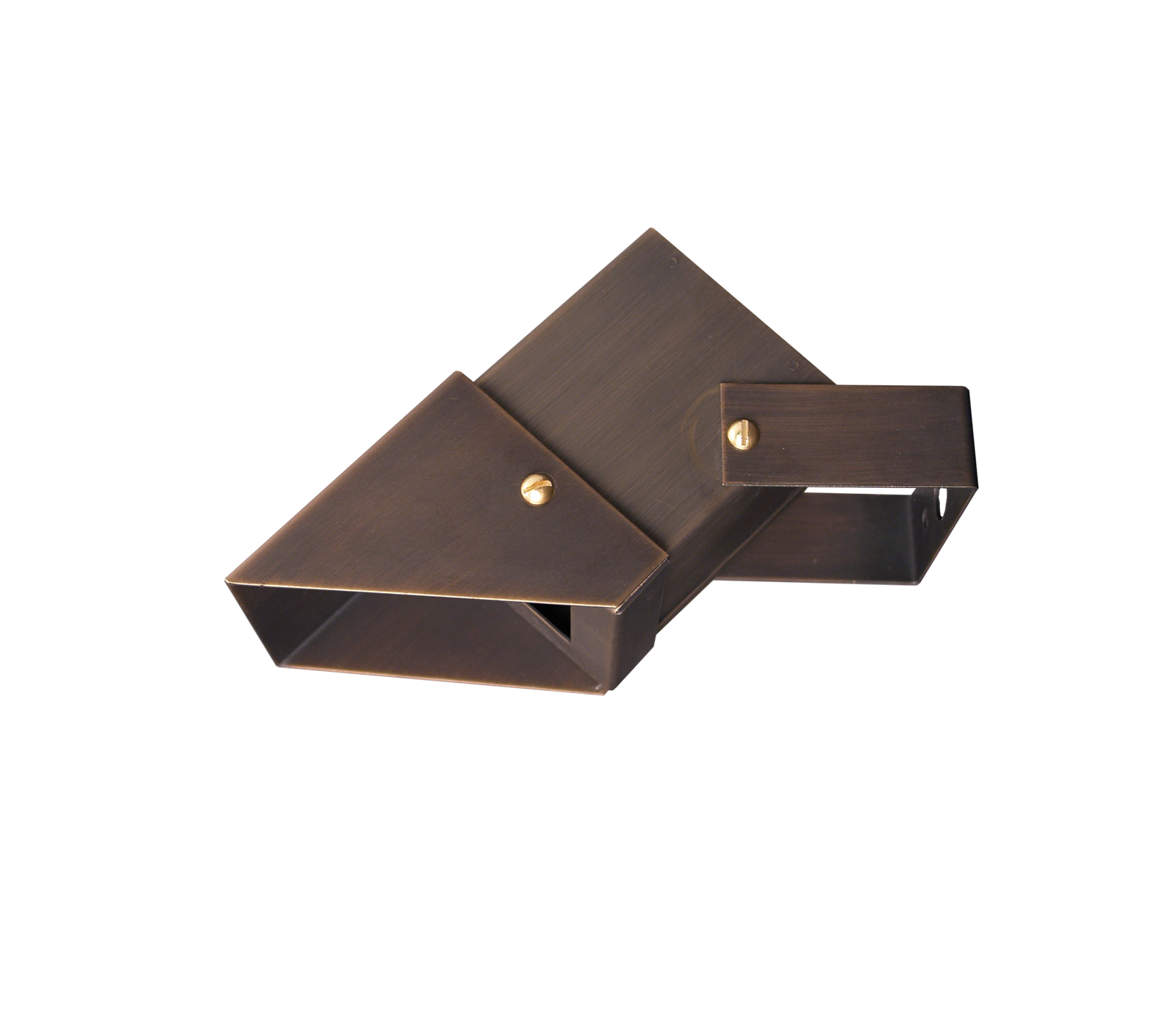

A square version of the Quasar 1, the Quasar 2 offers downlighting solutions when lighting overhead structures, walls or any similar item. The mounting bracket secures the fixture while still allowing front and back adjustments. The included lens retainer clip attaches the selected designer lens to the lamp for the desired light pattern output.

The Quasar 2 is designed for use with a FLEX GOLD™ Series MR16 LED lamp and includes five designer lenses, a lens retainer clip, 25’ of #18/2 low voltage wire and a Limited Lifetime Warranty.
Why Odyssey
Mobile Apps
Where to Buy
Solid Brass
20-40-60 Beam Spread
82+ CRI
25' Wire Lead
AMC
HUB Ready

Body Precision extruded brass.
Shroud Precision extruded from brass. Accepts up to one additional lens/hex cell accessory.
Lens  Comes with a complete set of optical designer lenses including spread lens, frosted, hex cell and blue lens for moonlighting effect.
Lamp  For use with FLEX GOLD™ Series MR16 LED lamps, available in 3W, 4W, 5W, 6W, and 8W. LED lamps are available in 2700K, 3000K and 5000K (4W and 6W only) color temperatures. Also compatible with a halogen MR16 lamp up to 35 Watts. Max LED wattage of 8W.
Electrical Requirements A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V.  Voltage range for FLEX GOLD™ Series PAR36 LED lamps is 10V-15V.
Lamp Connection Specification grade, beryllium copper lamp holder.
Wiring Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Hardware  Brass mounting bracket included.
Warranty  The Odyssey Family of products from Unique Lighting Systems® carries a Limited Lifetime Warranty against manufacturer’s defects.
Manufacturing  Manufactured to ISO 9001-2008 Quality Systems.

Please note that all Unique Lighting Systems® fixtures have a “Living Finish,” and can be expected to vary in hue over time.

Our fixtures come standard with our one-of-a-kind Weathered Brass finish, natural brass, or natural copper.

Additional colors may be ordered with powder coating options. These colors are subject to additional lead times and will incur a cost premium. A limited warranty applies to all powder coat finishes.

Brass Standard Finishes

Weathered Brass Weathered Brass



Brass Powder Coated Finishes

Tucson Tan Tucson Tan
Verde Green Verde Green
Black Black
White White
Titanium Knight Titanium Knight



Stock powder coated colors displayed are subject to varying lead-times and will incur an additional cost. A Limited Warranty applies to all powder coated products. Custom colors are available upon request. Please inquire about cost and lead times. Contact factory for custom colors and matching paint options.



Custom Powder Coat Colors

In addition to our standard colors, we also offer the full array of Cardinal Paint’s extensive line of powder coat colors. If there is a special color you are looking for, we can match Pantone colors, or even match a physical sample that you provide.
