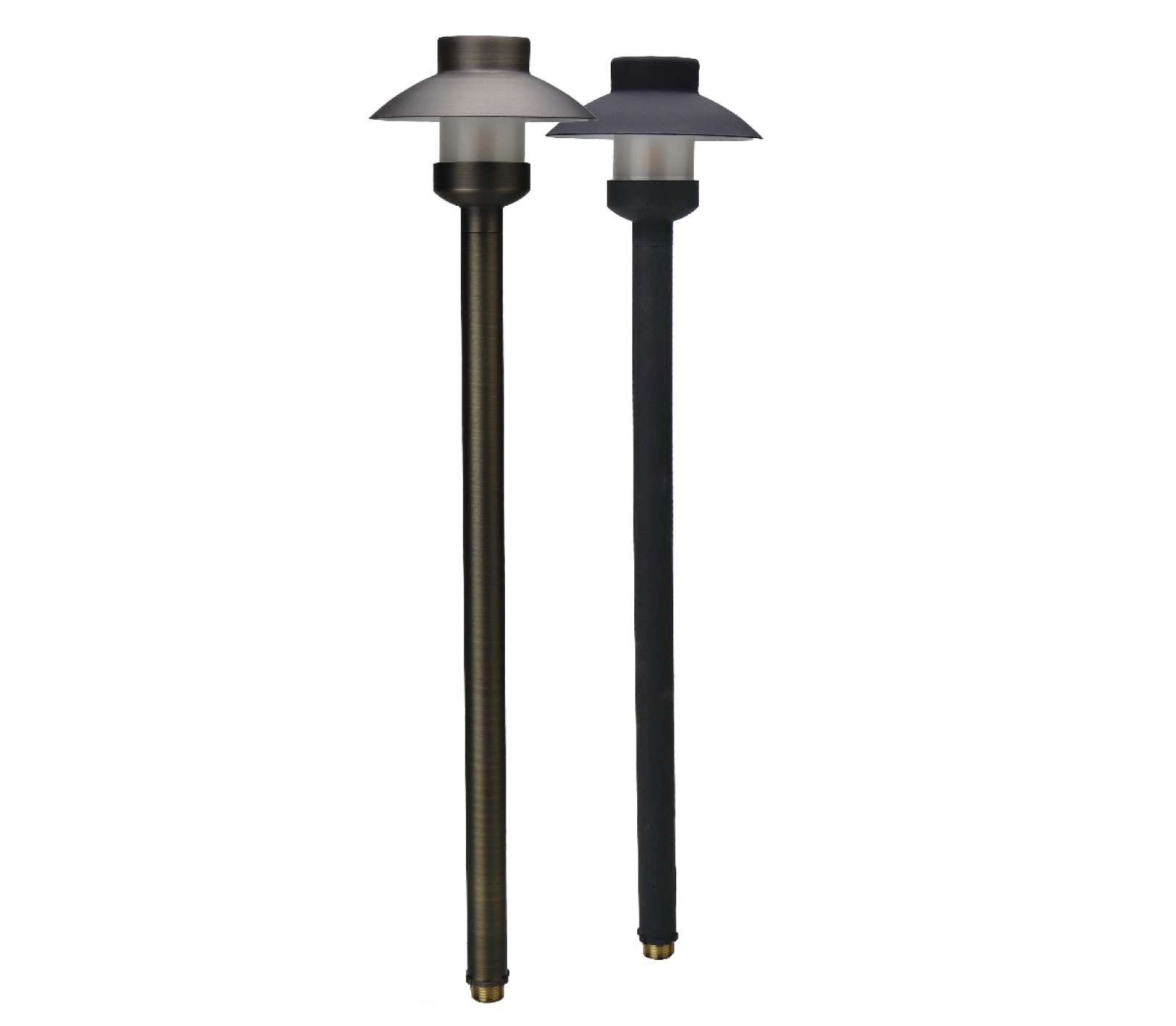

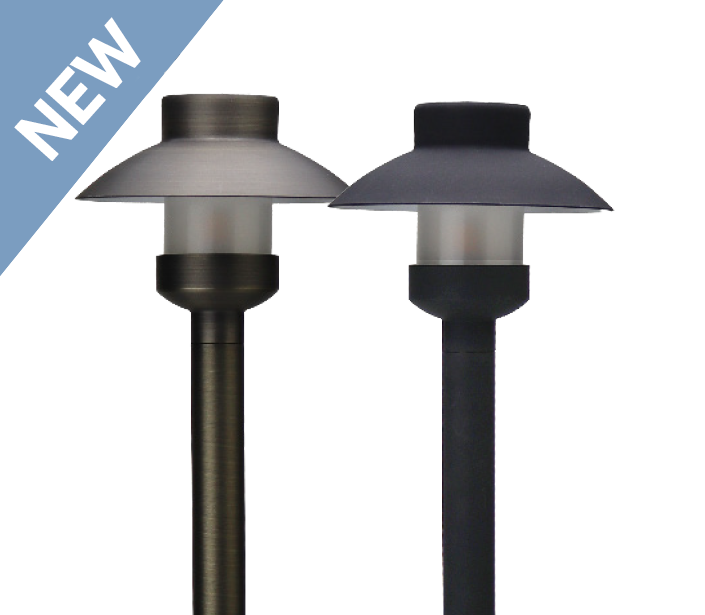

Templar 5 Knights Series

  • TUV Rheinland
Area Light

The Templar™ 5 is a classic canopy shade path and area light crafted from solid brass for lasting performance in harsh outdoor environments. Ideal for illuminating pathways, borders, and planter beds, choose your output with Flex Gold® G4/T3 Lamps or use Vivid to add color and individual lamp control.
Why Knights
Mobile Apps
Where to Buy
Solid Brass
360 Beam Spread
82+ CRI
Flex Wire Lead
AMC
HUB Ready

Mechanical       
  • Overall Height: 22” /  559 mm
  • Overall Diameter: 5” / 135mm
  • Stem Length: 18" / 457mm
  • Stake Dimentions: 8.5” Length / 216mm
  • Steam Mounting: Threaded 1/2” NPT
  • Wire Lead: 10” / 3m
Construction
  • Body Material: Cast & Machined Brass  (conforms to ASTM C38500)
  • Canopy & Stem Material: Machined Brass (conforms to ASTM C27400)
  • Stake: ABS
  • Lens Material: PMMA, diffused
Electrical
  • Input Voltage: 12–15V AC/DC
  • Socket: G4 bi-pin
  • Wire Gauge: 18 AWG
Compliance & Ratings
  • Location Rating: Outdoor
  • IP Rating: IP65 — Wet Location
  • Certificates: UL 2108
Warranty
  • Knights Series Fixtures are backed by a 15-year limited warranty that covers defects in materials and workmanship under normal use and operating conditions.
Templar 5

Weathered Brass (WB): Decorative electroplated weathered/antique bronze on brass. Multi-layer system with protective clear topcoat. Salt spray per ASTM B117: 500 hrs. Natural Patina over time.

Satin Black (BK): Satin black powder coating on brass. Salt spray per ASTM B117: 1,000 hrs.

Standard Finishes

Weathered Brass Weathered Brass
Black Black
