Well Light

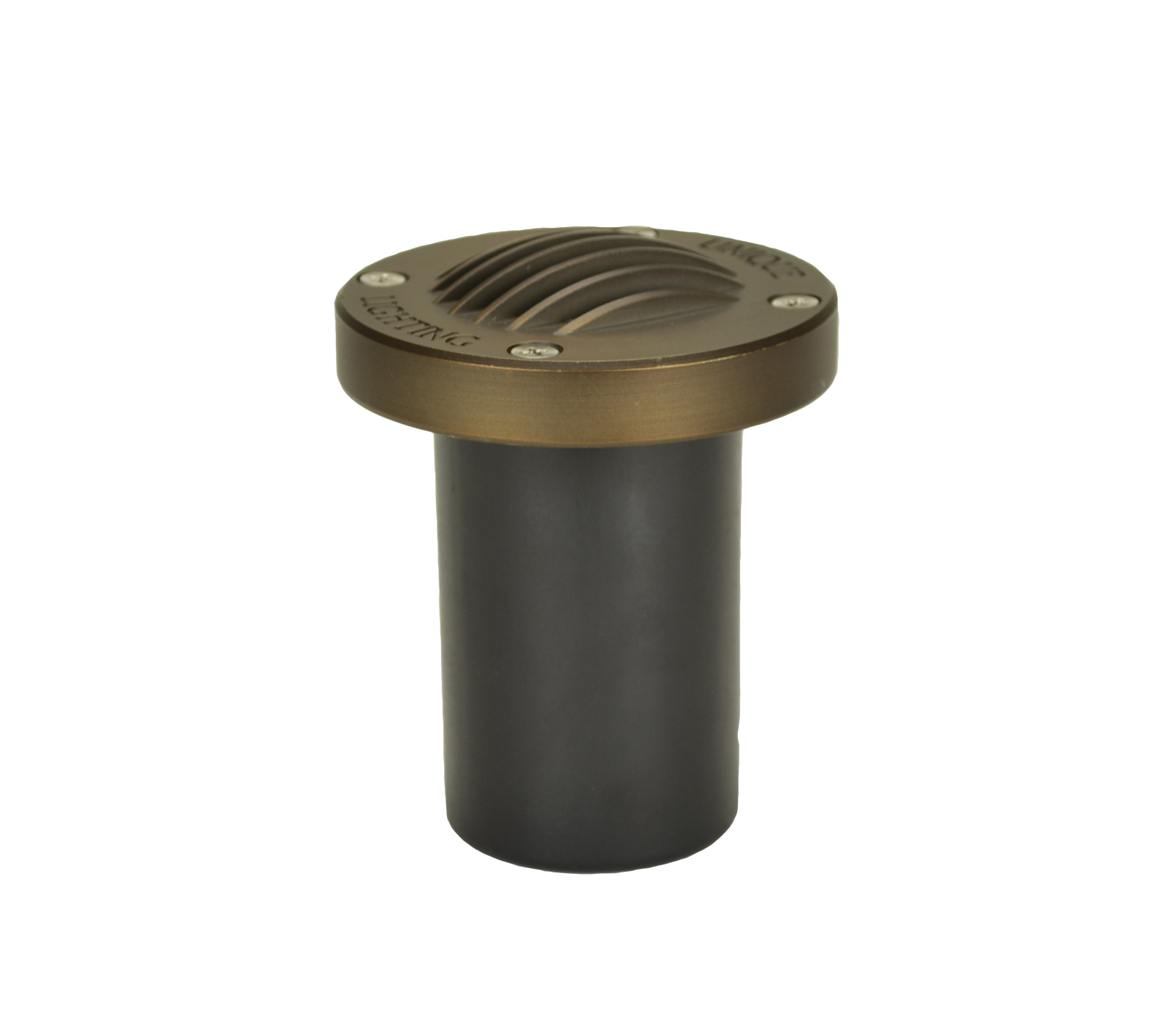

Designed to provide in-ground lighting solutions, the Nova is ideal for uplighting a variety of elements, from trees and shrubs to pillars and other vertical structures. The die cast brass louvered shroud is designed to minimize glare while the designer lenses allow maximum design control by creating various beam spreads and light output.

 Use the Nova as a back, side or accent light for the perfect grazing or shadow effect. Recess the Nova in hardscaping areas by utilizing the included PBT sleeve.

Cast Brass
20-40-60 Beam Spread
82+ CRI
25' Wire Lead
AMC
HUB Ready
Material Solid cast brass and composite construction.
Gasket  High-temperature silicone o-ring for a water-tight seal.
Shroud  Precision machined grate with captivated stainless steel screws. Accepts up to one additional lens/hex cell accessory.
Lens  Shock resistant glass lens.Comes with a complete set of optical designer lenses including spread lens, frosted, hex cell.
Lamp  For use with FLEX GOLD™ Series MR16 LED lamps in 3W, 4W, 5W or 8W. LED lamps are available in 2700K and 3000K color temperatures. Also compatible with halogen MR16 lamp up to 20 Watts.
Electrical Requirements   A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for FLEX GOLD™ Series LED MR16 lamps is 10V-18V.
Lamp Connection  Specification grade, beryllium copper lamp holder. GU5.3 base.
Wiring  Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Mounting Hardware  PBT sleeve for in-ground installation.

Please note that all Unique Lighting Systems® fixtures have a “Living Finish,” and can be expected to vary in hue over time.

Our fixtures come standard with our one-of-a-kind Weathered Brass finish, natural brass, or natural copper.

Additional colors may be ordered with powder coating options. These colors are subject to additional lead times and will incur a cost premium. A limited warranty applies to all powder coat finishes.

Brass Standard Finishes

Weathered Brass Weathered Brass



Brass Powder Coated Finishes

Tucson Tan Tucson Tan
Verde Green Verde Green
Black Black
White White
Titanium Knight Titanium Knight



Stock powder coated colors displayed are subject to varying lead-times and will incur an additional cost. A Limited Warranty applies to all powder coated products. Custom colors are available upon request. Please inquire about cost and lead times. Contact factory for custom colors and matching paint options.



Custom Powder Coat Colors

In addition to our standard colors, we also offer the full array of Cardinal Paint’s extensive line of powder coat colors. If there is a special color you are looking for, we can match Pantone colors, or even match a physical sample that you provide.
